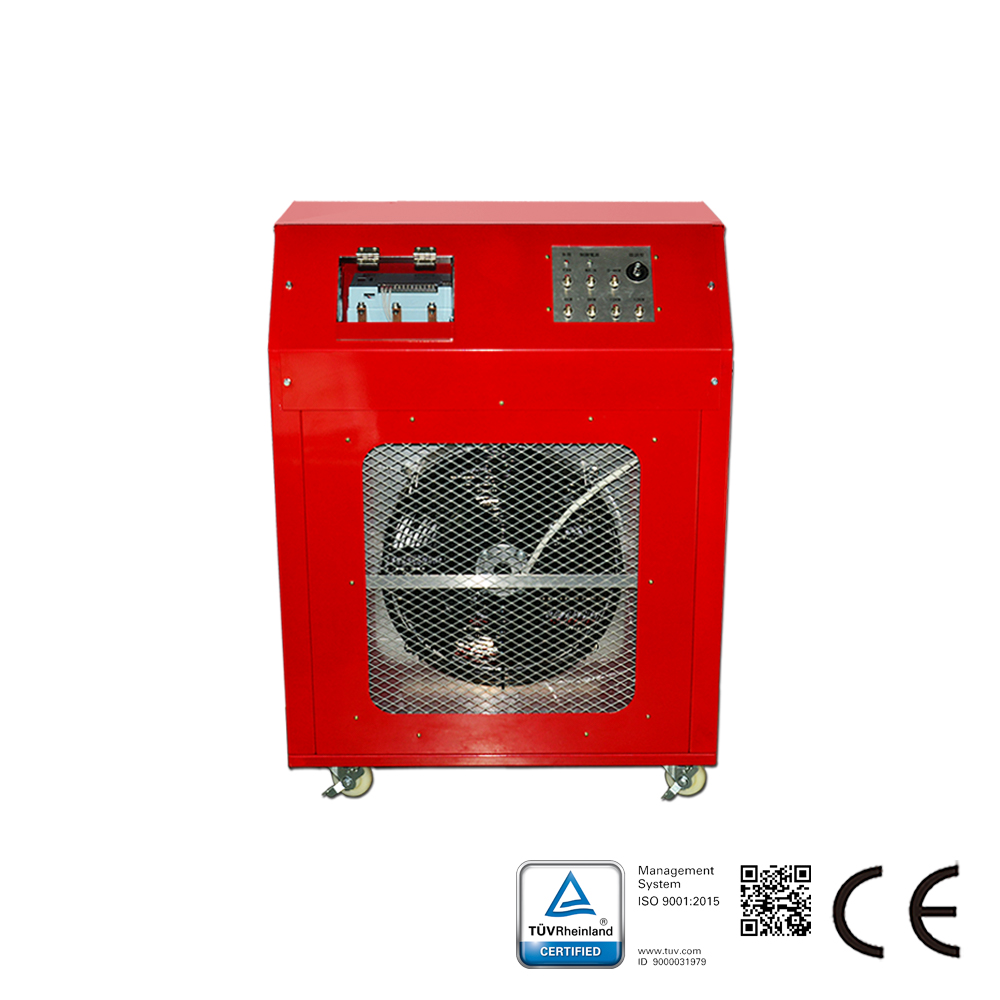

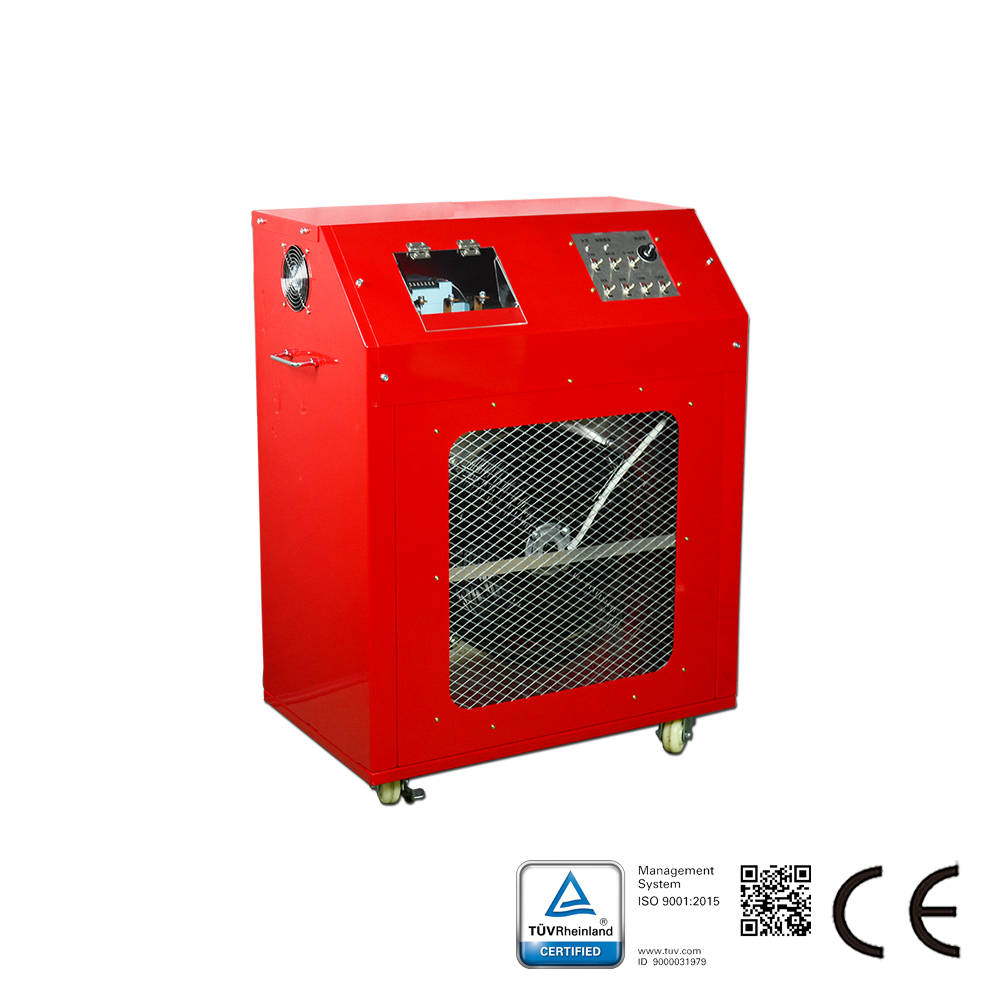

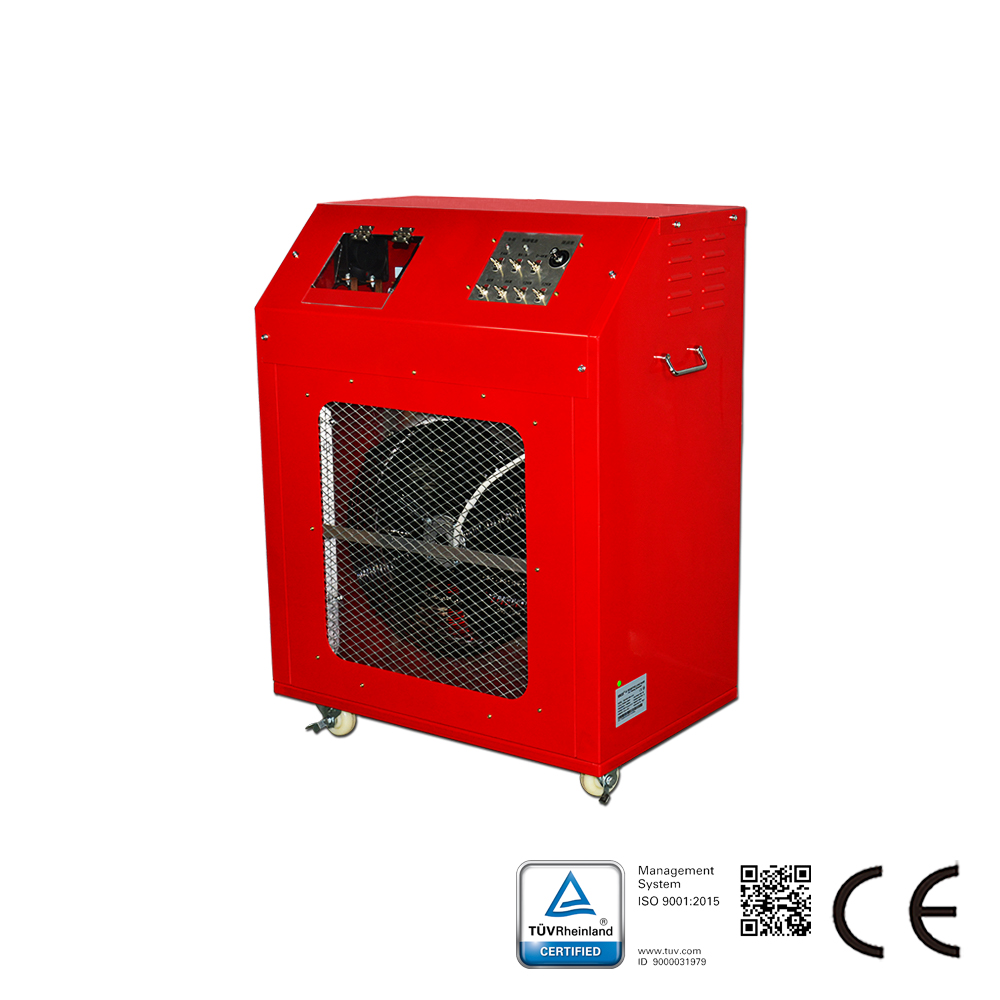

Description of  AC Load bank:

Sikes AC Load Bank contains reliable load elements, circuit breakers, contactors,AC power regulator, LED displaying creen and voltage and current meters. SIKES RAC solution provides an essential health check service to prevent diesel engine failure due to wet stacking. Wet stacking occurs due to under loading of the genset which results in wet un-burned fuel building up in the engine. SIKES offers could meet your demands.

Key Factors of  AC Load bank:

Compact and easy to operate;

Reliable load element;

Over-volt and temperature protection;

0-4KW continuous fine adjustment;

Transfer logs of current and voltage to computer for displaying.

Feature of  AC Load bank:

High rate testing for voltage, current and transient voltage waveform for generator and UPS units

Alloy structural body, make the model much lighter than normal steel casing.

Big LED screen, easy operation and vivid display of testing data and waveform

Power continuously adjustable from 0 to 4kW with current from 0 to 20A

Discharge time customized as 0-99 hours with resolution of 1 minute

Can set different current, end-up time, discharge power and voltage threshold (upper or lower limit)

Has emergency stop button

Auto stop discharge when three phase voltage is over high

Has over current short circuit protection

Warning and auto stop upon any fans failure
